(SOLVED) Why my https clients have been shown offline in Microsoft Endpoint Configuration Manager (SCCM) 2107

Symptom:

0x800b0109 iis client certificate

RetrieveTokenFromStsServerImpl failed with error 0x87d0027e

[CCMHTTP] ERROR INFO: StatusCode=401 StatusText=PreAuth token validation failed

Invoke-WebRequest : Server Error

403 – Forbidden: Access is denied.

You do not have permission to view this directory or page using the credentials that you supplied.

In Zeile:3 Zeichen:1

+ Invoke-WebRequest -Uri „https://



Cause:

This error happens in the end because of an non-root authority deployed/installed as into trusted root CA on the MP/SCCM Primary Server.

Solution

See 2nd Root Cause at first as your solution. It was mine.

Otherwise 1st Root Cause could also help you out.

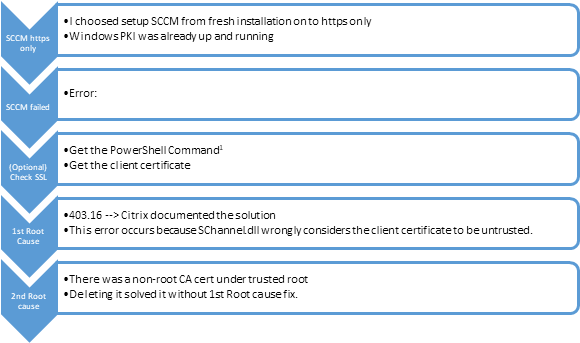

Details

Troubleshooting-Steps:





Check SSL authentication with the machines certificate:

Source: Verify HTTPS enabled CM Management Points with PowerShell – Deployment Research

## Shows you your machines certificates



Get-ChildItem
-Path
„cert:\LocalMachine\My“



## Optionally – you should check, if you can use tls12 –>

## [Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12



## Sets your client certificate and authenticates with this cert to the webserver

$cert
=
Get-ChildItem
-Path
„cert:\LocalMachine\My\1234567890ASDFASDF1234123412341234…“

Invoke-WebRequest
-Uri
„https://your-fqdn-to-MP/sms_mp/.sms_aut?mplist“
-Certificate
$cert



Before (bad … denied):



Invoke-WebRequest : Server Error

403 – Forbidden: Access is denied.

You do not have permission to view this directory or page using the credentials that you supplied.

In Zeile:3 Zeichen:1

+ Invoke-WebRequest -Uri „https://



After (good – Output has been cuted for privacy reasons )

Content : <MPList><MP Name=

Name=“SSLState“ V

ParsedHtml : mshtml.HTMLDocume

Forms : {}

InputFields : {}

Links : {}

Images : {}

Scripts : {}

AllElements : {@{innerHTML=; in

outerText=; tagNa

@{innerHTML=<HEAD

<BODY>9058</VERSI

innerText=9058; o

<BODY>9058</VERSI

Value=“63″></Prop

StatusCode : 200

StatusDescription : OK

RawContentStream : Microsoft.PowerSh

RawContentLength : 234

RawContent : HTTP/1.1 200 OK

Pragma: no-cache

Connection: close

Content-Length: 2

Cache-Control: no

Content-Type: tex

Date: Sun, 05 Dec

Server: Microsoft

X-Powered-By: ASP



<MPList><MP Name=



Root Cause 403.16 and the fix / solution

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL Value name:ClientAuthTrustMode Value type: REG_DWORD Value data: 2

For more details see here: Could not sign CSR Caused by: java.io.IOException: Cannot obtain certificate from certsrv authority: 403 Forbidden (ZDM-certsrv/1.0 – 403 16) (citrix.com)

Microsoft: IIS kann Anforderungen mit HTTP 403.7- oder 403.16-Fehlern ablehnen. – Internet Information Services | Microsoft Docs

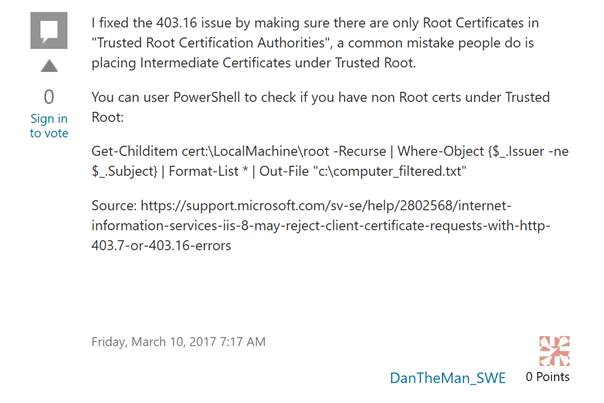

2nd Root cause

Found out, that this was the case.

Could delete this certificate and it works again.

Even without/deleted 1st root cause.

Source: 403.16 Problem in ISS8 on MP in DMZ (microsoft.com)
